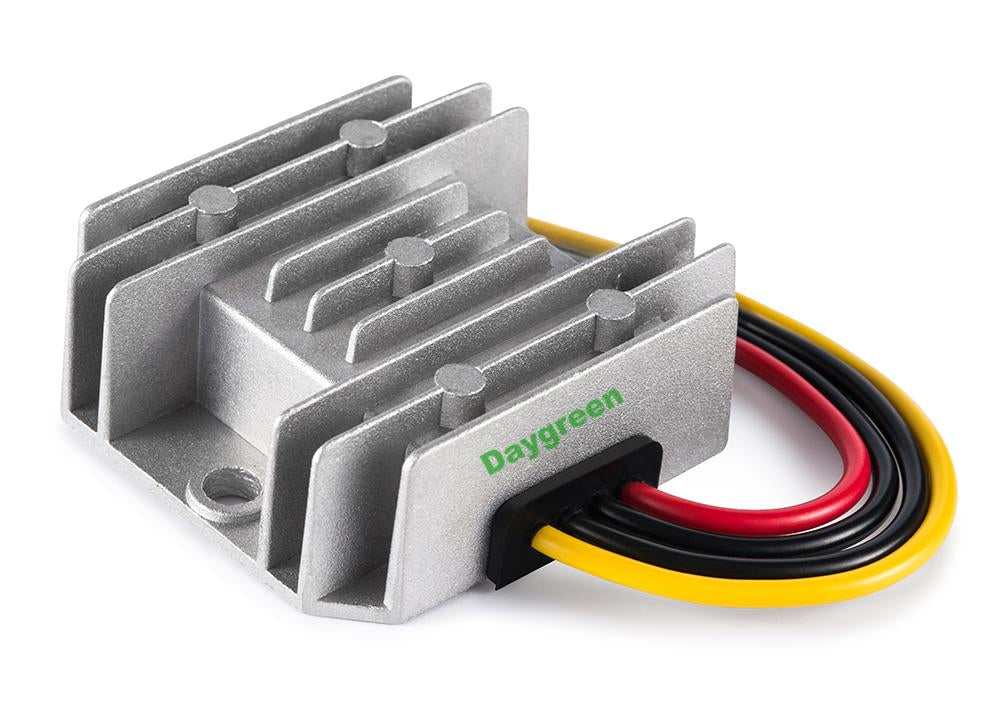

12V/24V to 6V 10A 60W DC DC Step Down Converter Voltage Regulator
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guarantee Safe Checkout
12V/24V to 6V 10A 60W DC DC Step Down Converter Voltage Regulator
Wide input voltage from 11 to 35V
Work for appliances from 0AMP to 10AMP automatically
100% full rated power
100% full stable output current
100% burn-in test
High-efficiency up to 95%
Waterproof sealed
Cooling by free air convection
Surface mountable
2-year warranty
Over-current, over-voltage protections
Over-temperature protection
According to:
EN 61000-6-3:2007/A1:2011/AC:2012
EN 55014-1:2006/A2:2011 EN 60950-1:2006/AC:2011
Efficiency: 95%
Input Voltage: 11-35V DC
Output Voltage: 6V
Output Current: 10A
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Dimension: 66*59*24mm
Net Weight: 0.12kg
Operating Temperature: -40~85°C
Certificates: CE, ROHS
Warranty: 2-year
Datasheet in details, Please download.
