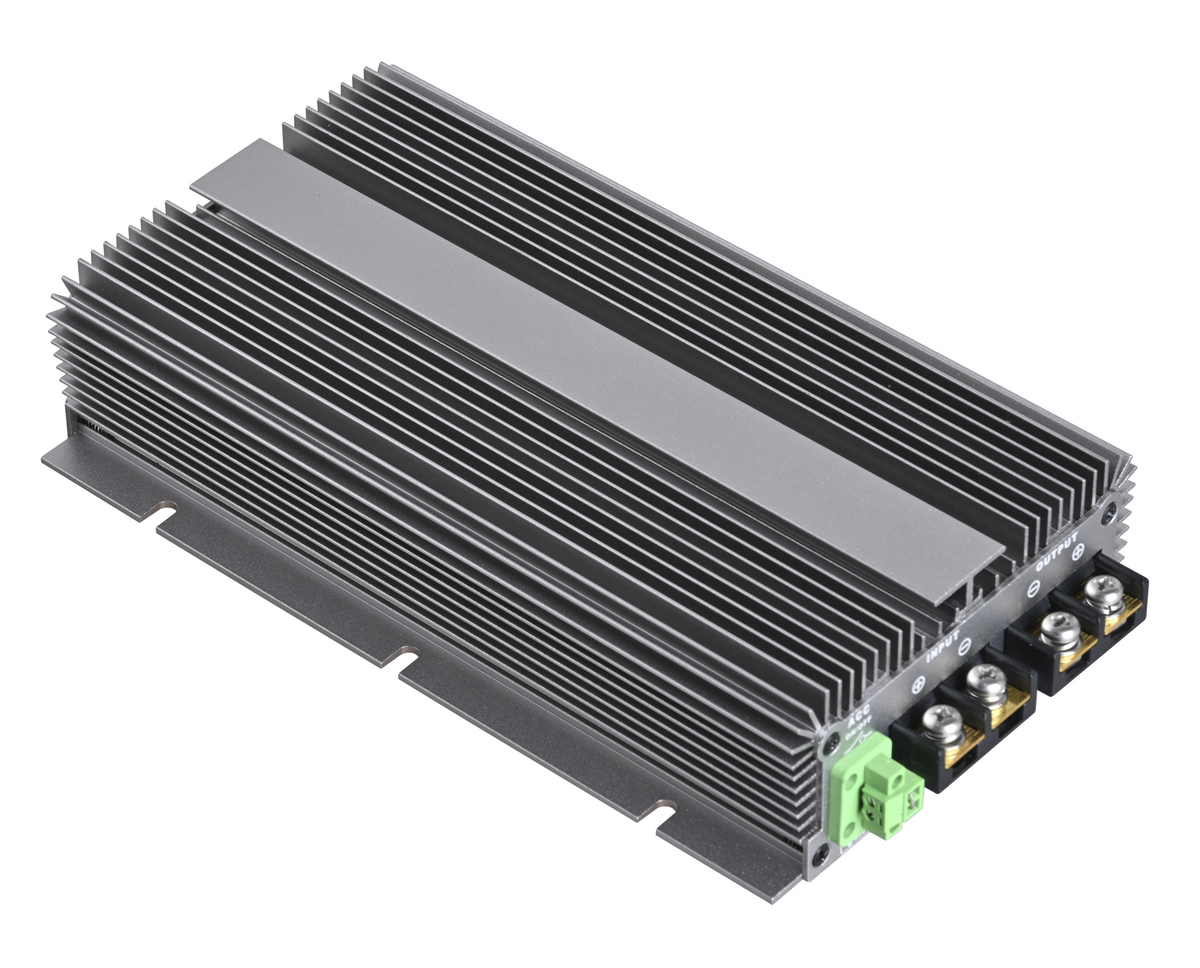

36V 48V to 12V 13.8V 80A 1104W DC DC STEP DOWN CONVERTER VOLTAGE REGULATOR
SKU: A4D13R8C80
$180.00
Maximum quantity available reached.
Product Description

Wide input voltage from 30 to 60V

Work for appliances from 0AMP to 80AMP automatically

100% full rated power

100% full stable output current

100% burn-in test

High-efficiency up to 95%

Waterproof sealed

Cooling by free air convection

Surface mountable

3-year warranty

Over-current, over-voltage protections

Over-temperature protection

According to:

EN 61000-6-3:2007/A1:2011/AC:2012

EN 55014-1:2006/A2:2011 EN 60950-1:2006/AC:2011



Efficiency: 95%

Input Voltage: 30-60V DC

Output Voltage: 13.8V

Output Current: 80A

Ripple: 120mVp

Line Regulation: ±0.2%

Load Regulation: ±0.2%

Voltage Accuracy:  ±1.5%

Enclosures: IP68

Dimension: 220*130*50mm

Net Weight: 2.2kg

Operating Temperature: -40~85°C

Certificates: CE, ROHS
